We utiize NO-DIG technology, which was developed based on NTT's R & D results, to ontinue to take part in improving social infrastructure efficiency, as well as to contributing to global environmental protection.
Even in narrow spaces, quick and safe, cuts all around!
By using an electric drive system, we were able to achieve both increased speed and less effort compared to the manual gear.
Two main features
1. With the cutting section drastically thinned, it can be used for steel pipes with distances of up to 1.25cm. Working in very narrow spaces used to be impossible until now.

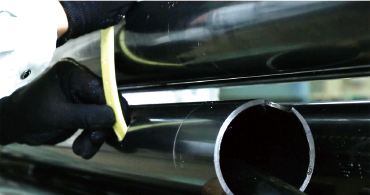

2. A simple yet safe method for protecting cables eliminates any worries about damaging cables.

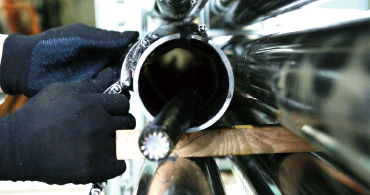

Insert the lubricated protective jig into the cable verification hole.
Attach the part for the cutting section into the jig insertion point.
The driving gear passes the lashing belt through the fastener holes.
Attach the cut area fixing jig stopper.

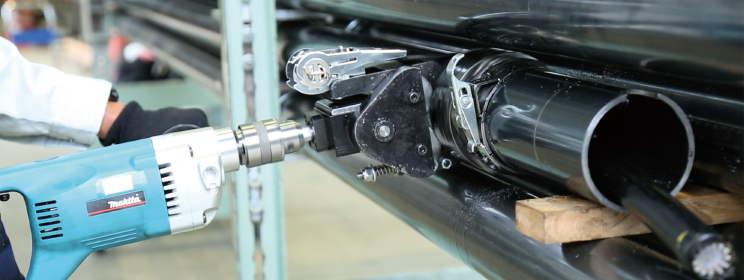

After attaching the electric drill to the triangular shaft of the gear drive unit, setup is complete.
The cutting operation ends after approximately three minutes.
| Product name | Cutter Ace 2 | |
|---|---|---|
| Outer dimensions | tube + devices | H300×W500×D150mm |
| Cable verification unit | H50×W150×D150mm | |
| Drill | H100×W300×D100mm | |
| Weight | Approximately 10kg | |
| Energy consumed | 710W | |
| Drill | Makita 6304LR | |
