Bird's Eye View Aerial Photography

Multicopter Ai
(For bridge pipelines)

1.Multicopter Ai (for bridge pipelines)

Overview

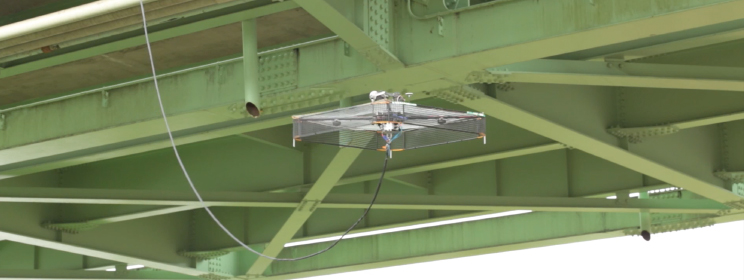

An unmanned helicopter equipped with a high-spec camera. Since it is controlled remotely, it can access high-up places or places inaccessible to humans.

Overview

Features

Six main features of Multicopter Ai (for bridge pipelines)

Features
1.Safety inspections conducted remotely
Inspections of slippery or very narrow places can be done. Footing installation or traffic limitations are mostly unnecessary.

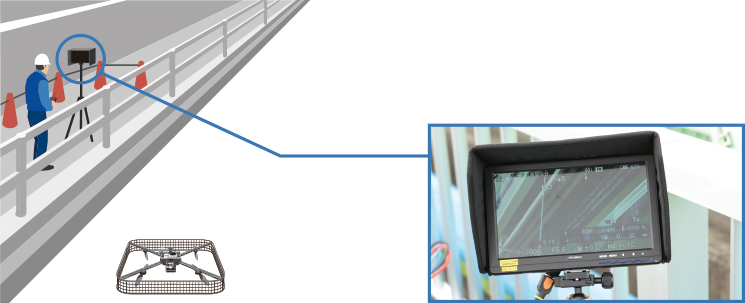

2.Video check monitor
It is possible to check the video feed continuously, allowing inspections to proceed smoothly.
Features

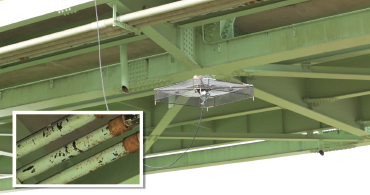

3.Vivid video
It uses a camera capable of 24.3 megapixel fidelity which makes it possible to capture highly detailed images for inspections.
Features
4.Fully guarded
Even if the device were to fall, the body and its components will not be damaged.
Features
5.Equipped with gyro stabilization function
Even if the device shakes, the camera's position is not affected, allowing inspections to proceed smoothly.
Features

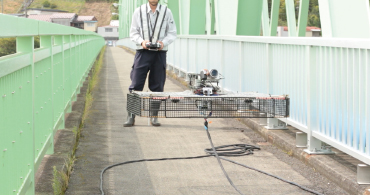

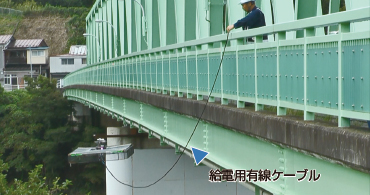

6.Power feed by cable capability
Since power can be fed to the device directly from a generator through a cable, it is possible to perform tasks without time limitations.

Product specifications

Product name Multicopter Ai (for bridge pipelines)
Outer dimensions H990×W990×D450mm
Weight 4.8kg
Power consumed 2,000W（max.）
Inspection camera SONY α6000
Operation camera GoPro HERO3
Cable length 30m
Cable weight 6.0kg

Explanation video
