Easy rebar exploration with one hand

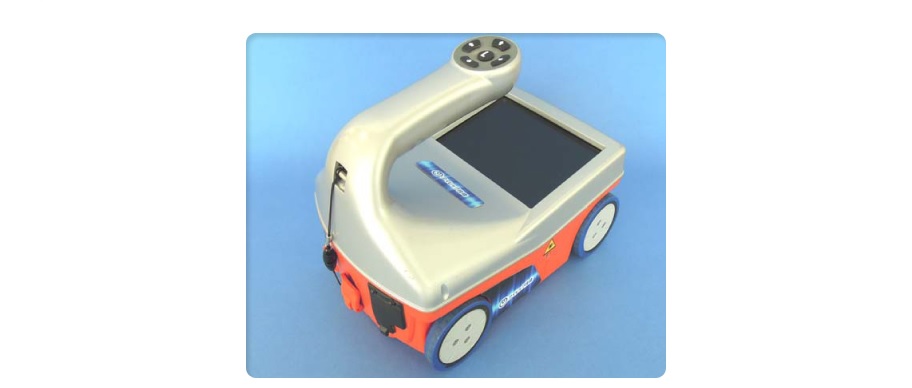

This device is used to explore the rebar of concrete structures. It is possible to explore maximum depth up to 0.40m.
Very compact and lightweighted, it can be operated with one hand and the "flat display software" can make two-dimensional display possible
■Used in rebar exploration of concrete structures. Maximum exploration depth over 0.40m
■High density exploration is possible. (Can identify 14mm pitch rebar of 10cm depth )
■Antenna and display screen is intergrated.
■Have back cursor function (One person can keep recording and the research efficiency will be increased)
| Possible exploration depth |
more than 30cm |
|---|---|
| Data storage capacity |
Internal memory (exploration length 2,800 m) SD card (2 ~ 8GB support) |
| Measuring obejcts |
objects Rebar, PVC pipe, electricity cable, cavity, etc. |
| Weight | 1.5kg |
| Main functions | Automatic gain function, automatic depth correction function, Auto target, display color change, scrolling ・ 3D visualization |

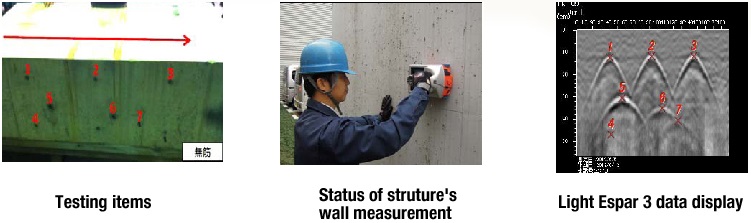

■Reinforcement investigation of piers
■Cavity investigation of the tunnel wall
■Rebar exploration of manhole
■Cavity investigation of the old road wall
■Buildings's piping and reinforcement investigation
