We utiize NO-DIG technology, which was developed based on NTT's R & D results, to continue to take part in improving social infrastructure efficiency, as well as to contributing to global environmental protection.
■Input touch panel's easy operation
Touch panel is attached to the sreen display .
It can also be used as a removable mobile PC.

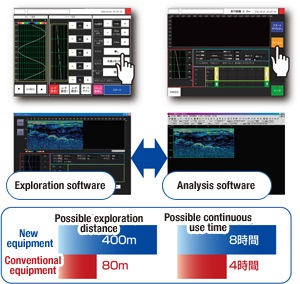

■One device can carry out the exploration, analysis, and reporting
The device is integrated with exploration and analysis software, with one click,
you can carry out seamlessly exploration and analysis work.
■Can carry out continously long distance, long time exploration
The exploration distance has been increased five times compared with the
conventional practice and the continuous operation time has been doubled.
This feature contributes greatly to improving exploration's efficiency.

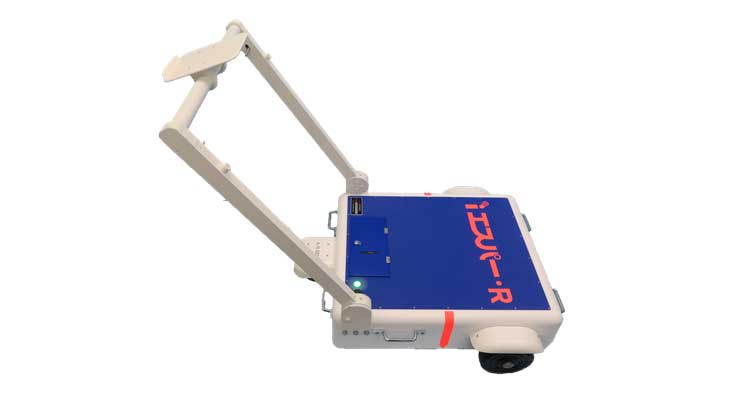

■ Light body with total weight less than 25kg
It is foldable, compact, and easy to move.
With dust and drip-proof structure, it can implement exploration even in harsh
environment.

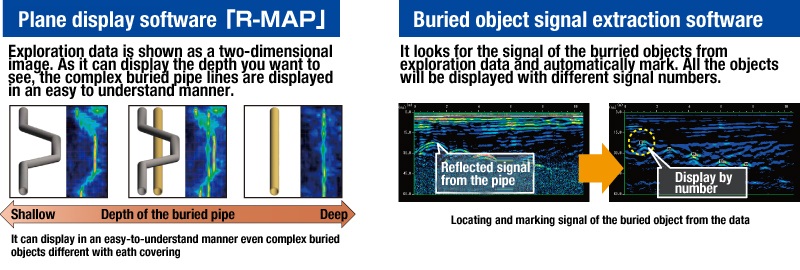

5. Complete support software
■Complete support software
| Primary use | Buried pipe exploration Cavity survey |
|---|---|
| Center frequency | 400MHｚ |
| Measurement accuracy |
Horizontal: within± 10cm Vertical: within ±10% |
| Possible exploration minimum minor diameter |
φ30mm |
| Possible exploration depth |
~2.5m |
