By the transfer and image processing technology of its own, I will high-speed inspection the appearance of the various cards.

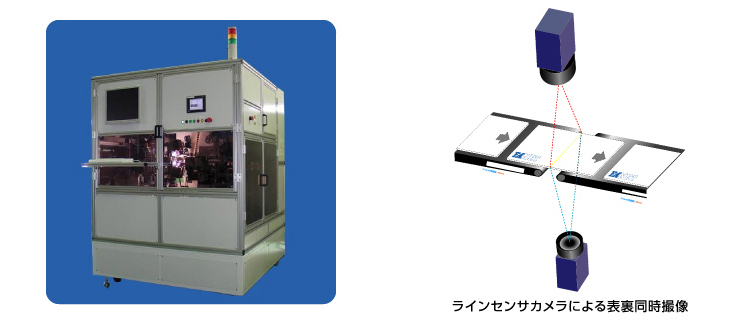

■Image processing apparatus of the original development is the automatic follow-up to the transfer speed, and high-speed inspection. (High-speed inspection of about 9,000 up to one hour)
■The multiple registration of the reference image, I realize the inspection allows the variation of non-defective product.
■"line block position correction" function, can be inspected with high accuracy.
■It is equipped with a dedicated missing-character detection algorithm.
■Inspection analysis system "VST" (optional), it can understand the position information of the defective part.
■The maintenance services to be remotely connected using a communication line to allow the quick response of the trouble occurs.
■Flexible system configuration can be tailored to detect certain defects.
| Target Work | JIS |
|---|---|
| Work Shape | Length：86mm Width：54mm Thickness：0.25mm～0.75mm Weight: 6g / sheets or less Warpage: 1mm or less |
| Processing Time | About 9,000 sheets / hour maximum |
| Defect Detection Capability | ・Front and back printing unit: Ink dirt, pinball, scratches, etc. ・Front and back character part: missing characters, smudged characters, such as blurred characters |
| Minimum Defect Size | Width direction: 75μm · flow direction: 75μm |
| Imaging device | Image processing unit (FC series), inspection display PC Keyboard / mouse, LCD monitor, uninterruptible power supply (UPS) Remote communication equipment, HUB, DSU Line sensor camera, lighting equipment, lighting power |
|---|---|
| Carrier device | (Card supply unit, inspection conveyor, sorting part) work carrier Inspection unit (suction conveyor) Inspection unit operation panel (LCD touch type) |
| External dimensions | Transport equipment: about 1800W x 1800L x 1960H |
| Equipment weight | About 1000kg |
| Power | Transport equipment: AC three-phase 200V ± 10% capacity: 8.0KVA |
| Air | 0.4MPa (about 4kg / ㎠) 450NL/min (clean air dehumidification) |
