Lightweight, Compact, High-performance Manhole Accumulated Water Filtration System

AI Filter

Features

It is a lightweight, compact, high-performance filtering device for drainage to the public sewer, such as the accumulated water in a manhole.
※ Designed to remove dirt, dust, and does not chemically treat harmful substances

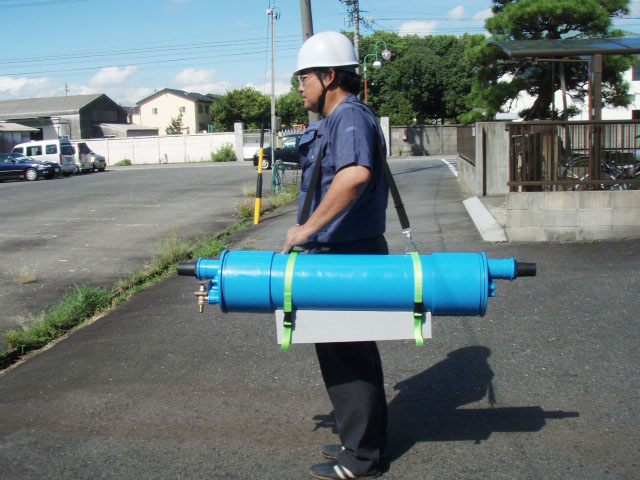

■Can be easily transported and installed by one person (weight: 15kg)
■Also can be loaded in the carrier of light trucks (Φ228XL1300)
■Can be connected to a 50A hose
■Safety device to release pressure if 87KPa or more is applied
■The filter can be easily exchanged
※ If it has become totally clogged visually, it can be re-used after cleaning.

AI Filter1
AI Filter2

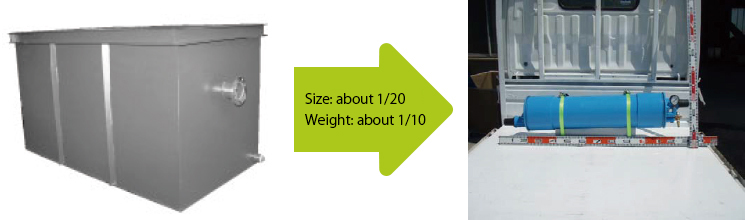

Comparison

About 1/20 in size, compact and about 1/10 in weight than the conventional
About 1/20 in size, compact and about 1/10 in weight than the conventional

Specifications

Port Size 50φ㎜
Filtration Paricle Size 50μ
Maximum Flow 380L/min
External Dimensions Φ228×1300L
Save Working Pressure/th> 87Kpa
Maximum Operating Temperature 75℃
Estimated Replacement Filter 60?
Weight (with stand) 15kg
